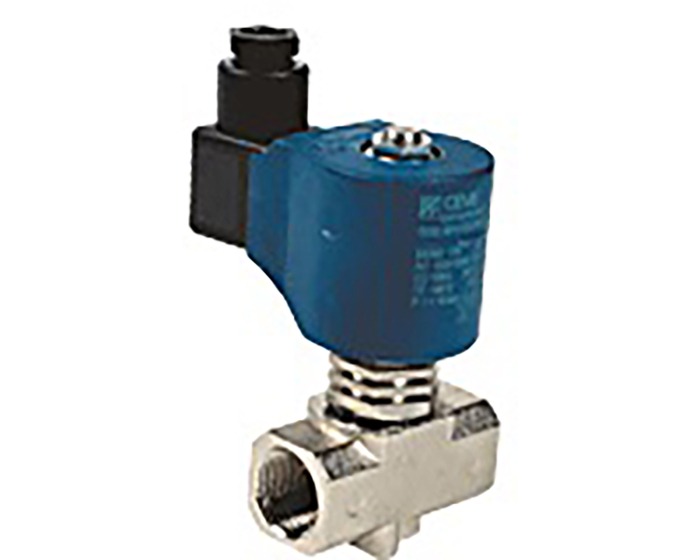

The solenoid valve type ESV 90 is a 2/2-way normally closed (NC) brass solenoid valve for steam.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 1 |
| Coil type | B12 |
| Connector | T30 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 56.0 |
| Fluid | Steam |
| Protection index (IP) | IP 65 |
| Gasket | PTFE |
| Kv (m³/h) | 1.10 |
| Body material | Brass CW617N |
| Position | Normally closed |
| PS (bar) | 10 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 180 |
| TS min (°C) | 0 |
| Solenoid valve type | Servo-assisted |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N DN15 - 1/2'' 230 V AC | 088002 | S1004677 |
€64.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 230 V AC | 088003 | S1004678 |
€171.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 230 V AC | 088004 | S1004679 |
€172.76
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 230 V AC | 088005 | S1004680 |
€540.10
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 230 V AC | 088006 | S1004681 |
€551.47
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 230 V AC | 088007 | S1004682 |
€778.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V AC | 088012 | S1004683 |
€64.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V AC | 088013 | S1004684 |
€171.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V AC | 088014 | S1004685 |
€172.76
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 24 V AC | 088015N | S1004686 |
€540.10
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 24 V AC | 088016N | S1004687 |
€551.47
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 24 V AC | 088017N | S1004688 |
€778.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 48 V AC | 088032N | S1004689 |
€64.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 48 V AC | 088033N | S1004690 |
€171.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 48 V AC | 088034N | S1004691 |
€172.76
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 48 V AC | 088035N | S1004692 |
€540.10
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 48 V AC | 088036N | S1004693 |
€551.47
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 48 V AC | 088037N | S1004694 |
€778.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V DC | 088052 | S1004695 |
€64.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V DC | 088053 | S1004696 |
€171.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V DC | 088054N | S1004697 |
€172.76
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 24 V DC | 088055N | S1004698 |
€540.10
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 24 V DC | 088056N | S1004699 |
€551.47
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 24 V DC | 088057N | S1004700 |
€778.56
(excl. btw)
|
add to cart |
