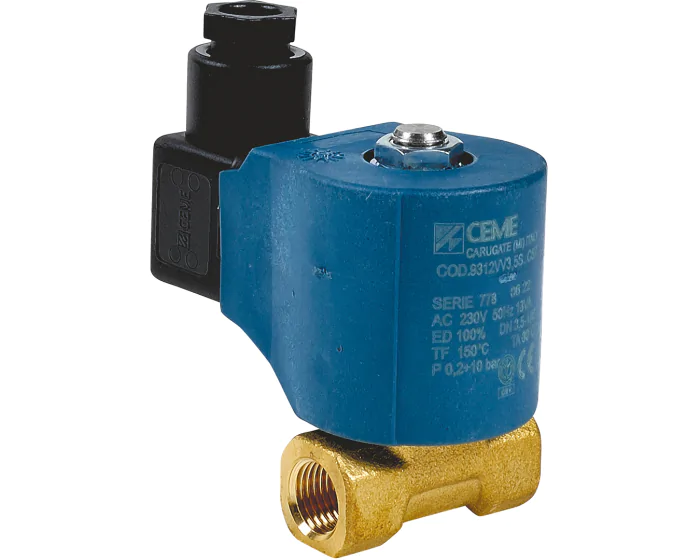

The solenoid valve type EST 93 FIOUL is a 2/2-way direct acting brass solenoid valve, normally closed (NC), all voltages.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 15 |
| Minimum delta P (bar) | 0 |
| Coil type | B12 |
| Connector | T30 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 42.0 |
| Fluid | Fuel |
| Protection index (IP) | IP 65 |
| Gasket | FKM |
| Kv (m³/h) | 0.27 |
| Body material | Brass CW617N |
| Position | Normally closed |
| PS (bar) | 15 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 150 |
| Solenoid valve type | Direct acting |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N 230 V AC DN8 - 1/4'' | 088100 | S1005139 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 230 V AC DN10 - 3/8'' | 088101 | S1005140 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 230 V AC | 088102 | S1005141 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC DN8 - 1/4'' | 088110N | S1005142 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC DN10 - 3/8'' | 088111N | S1005143 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V AC | 088112 | S1005144 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN8 - 1/4'' 110 V AC | 088120N | S1005145 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN10 - 3/8'' 110 V AC | 088121N | S1005146 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 110 V AC | 088122N | S1005147 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN8 - 1/4'' 48 V AC | 088130N | S1005148 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN10 - 3/8'' 48 V AC | 088131N | S1005149 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 48 V AC | 088132N | S1005150 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN8 - 1/4'' 12 V DC | 088140 | S1005151 |
€24.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN10 - 3/8'' 12 V DC | 088141 | S1005152 |
€22.37
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 12 V DC | 088142N | S1005153 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC DN8 - 1/4'' | 088150 | S1005154 |
€24.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC DN10 - 3/8'' | 088151N | S1005155 |
€35.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V DC | 088152 | S1005156 |
€35.71
(excl. btw)
|
add to cart |
