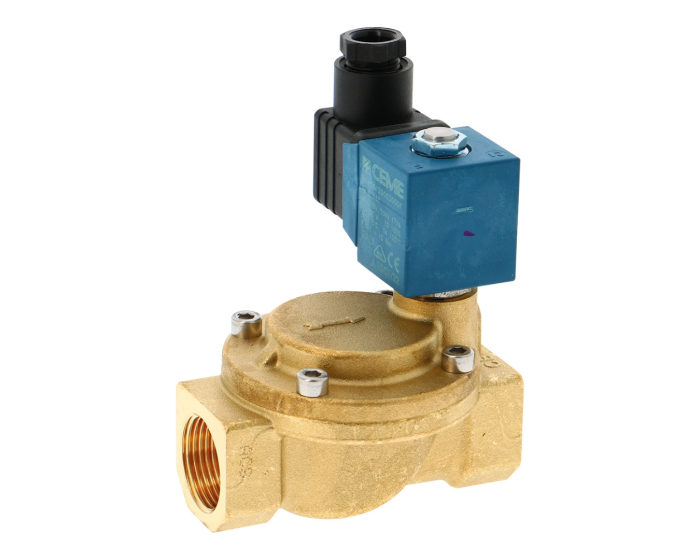

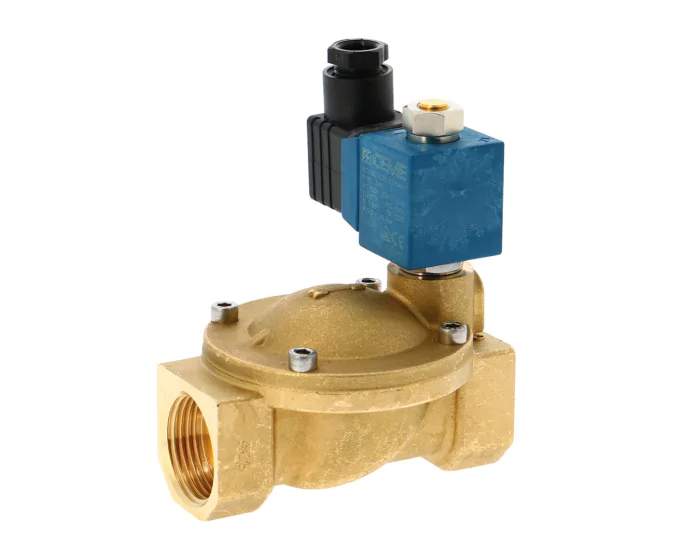

The solenoid valve type ESM 87 W is a 2/2-way normally open (NO) servo-assisted brass valve especially suitable for drinking water (approved).
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 0.3 |
| Coil type | B6S |
| Connector | T30 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 61.0 |
| Fluid | Drinking water |
| Protection index (IP) | IP 65 |
| Kv (m³/h) | 2.10 |
| Body material | Brass CW617N |
| Membrane material | EPDM ACS |
| Position | Normally open |
| PS (bar) | 10 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 90 |
| Solenoid valve type | Servo-assisted |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N DN15 - 1/2'' 230 V AC | 087502 | S1004340 |
€77.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 230 V AC | 087503 | S1004341 |
€91.14
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 230 V AC | 087504 | S1004342 |
€91.14
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V AC | 087512 | S1004343 |
€77.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V AC | 087513 | S1004344 |
€91.14
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V AC | 087514 | S1004345 |
€91.14
(excl. btw)
|
add to cart |
