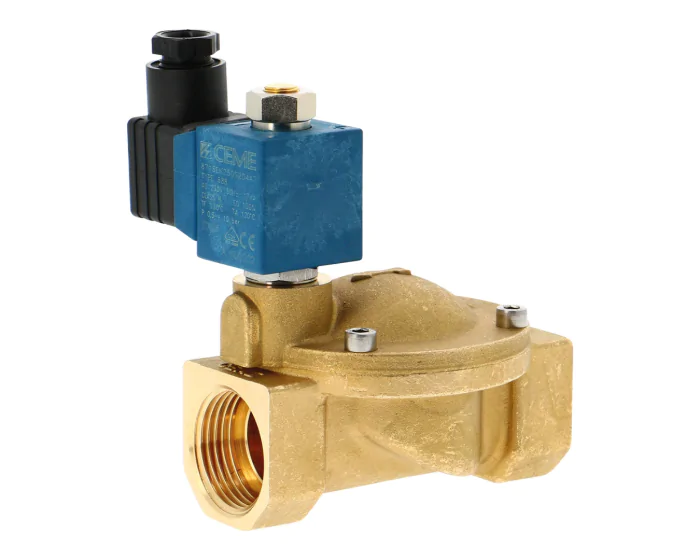

The solenoid valve type ESM 87 is a 2/2-way normally open (NO) servo-assisted brass solenoid valve, all voltages.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 0.3 |
| Coil type | B6S |
| Connector | T30 |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 61.0 |
| Fluid | Water / Air / Neutral gases |
| Protection index (IP) | IP 65 |
| Kv (m³/h) | 1.86 |
| Body material | Brass CW617N |
| Membrane material | NBR |
| Position | Normally open |
| PS (bar) | 10 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 80 |
| Solenoid valve type | Servo-assisted |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N 230 V AC DN10 - 3/8'' | 087001 | S1004183 |
€68.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 230 V AC | 087002 | S1004184 |
€68.43
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 230 V AC | 087003 | S1004185 |
€70.49
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 230 V AC | 087004 | S1004186 |
€77.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 230 V AC | 087005 | S1004187 |
€163.70
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 230 V AC | 087006 | S1004188 |
€195.01
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 230 V AC | 087007 | S1004189 |
€288.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN65 - 2''1/2 230 V AC | 087008 | S1004190 |
€833.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN80 - 3'' 230 V AC | 087009 | S1004191 |
€821.49
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC DN10 - 3/8'' | 087011 | S1004192 |
€68.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V AC | 087012 | S1004193 |
€68.43
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V AC | 087013 | S1004194 |
€70.49
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V AC | 087014 | S1004195 |
€77.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 24 V AC | 087015 | S1004196 |
€163.70
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 24 V AC | 087016 | S1004197 |
€195.01
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 24 V AC | 087017 | S1004198 |
€288.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN65 - 2''1/2 24 V AC | 087018N | S1004199 |
€833.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN80 - 3'' 24 V AC | 087019N | S1004200 |
€821.49
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN10 - 3/8'' 48 V AC | 087031N | S1004201 |
€68.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 48 V AC | 087032N | S1004202 |
€68.43
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 48 V AC | 087033N | S1004203 |
€70.49
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 48 V AC | 087034N | S1004204 |
€77.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 48 V AC | 087035N | S1004205 |
€163.70
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 48 V AC | 087036N | S1004206 |
€195.01
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 48 V AC | 087037N | S1004207 |
€288.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN65 - 2''1/2 48 V AC | 087038N | S1004208 |
€833.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN80 - 3'' 48 V AC | 087039N | S1004209 |
€821.49
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN10 - 3/8'' 12 V DC | 087041N | S1004210 |
€68.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 12 V DC | 087042N | S1004211 |
€68.43
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 12 V DC | 087043 | S1004212 |
€70.49
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 12 V DC | 087044 | S1004213 |
€77.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 12 V DC | 087045N | S1004214 |
€163.70
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 12 V DC | 087046N | S1004215 |
€195.01
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 12 V DC | 087047N | S1004216 |
€288.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN65 - 2''1/2 12 V DC | 087048N | S1004217 |
€833.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN80 - 3'' 12 V DC | 087049N | S1004218 |
€821.49
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC DN10 - 3/8'' | 087051 | S1004219 |
€68.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V DC | 087052 | S1004220 |
€68.43
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V DC | 087053 | S1004221 |
€70.49
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V DC | 087054 | S1004222 |
€77.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 24 V DC | 087055 | S1004223 |
€163.70
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 24 V DC | 087056 | S1004224 |
€195.01
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 24 V DC | 087057 | S1004225 |
€288.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN65 - 2''1/2 24 V DC | 087058N | S1004226 |
€833.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN80 - 3'' 24 V DC | 087059N | S1004227 |
€821.49
(excl. btw)
|
add to cart |
