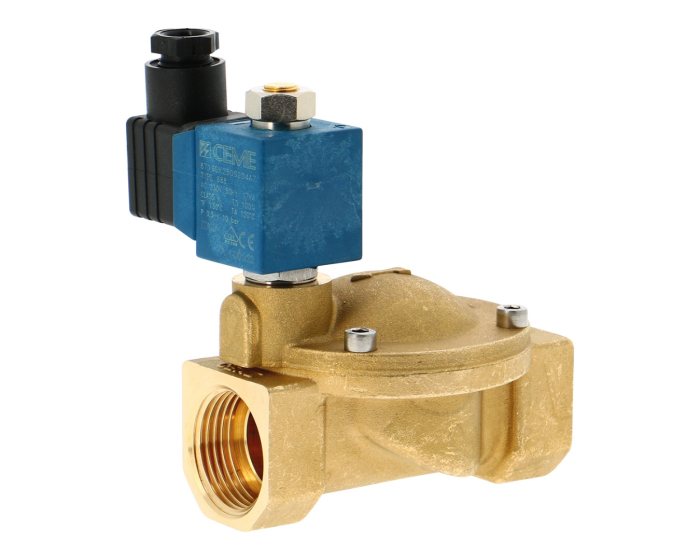

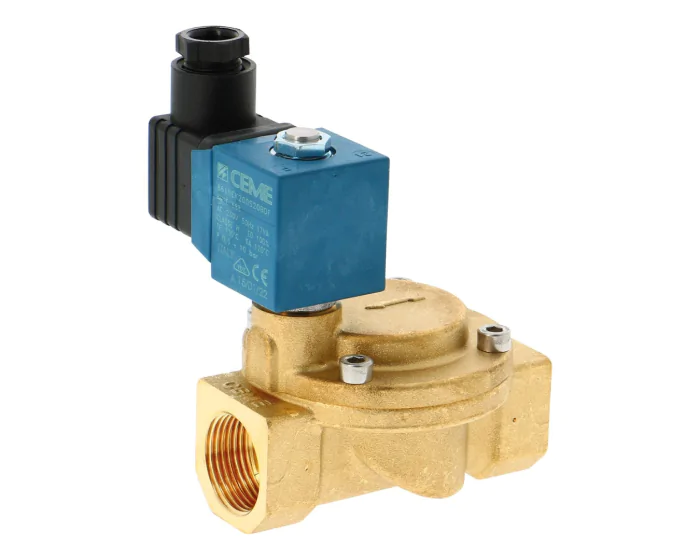

The solenoid valve type ESM 86 is a 2/2-way normally closed (NC) servo-assisted brass solenoid valve, all voltages.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 0 |
| Coil type | B6 |
| Connector | T30 |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 61.0 |
| Fluid | Water / Air / Neutral gases |
| Protection index (IP) | IP 65 |
| Kv (m³/h) | 1.86 |
| Body material | Brass CW617N |
| Membrane material | NBR |
| Position | Normally closed |
| PS (bar) | 10 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 80 |
| Solenoid valve type | Servo-assisted |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N 230 V AC DN10 - 3/8'' | 086001 | S1003925 |
€64.06
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 230 V AC | 086002 | S1003926 |
€64.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 230 V AC | 086003 | S1003927 |
€67.54
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 230 V AC | 086004 | S1003928 |
€73.00
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 230 V AC | 086005 | S1003929 |
€156.20
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 230 V AC | 086006 | S1003930 |
€187.77
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 230 V AC | 086007 | S1003931 |
€268.23
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN65 - 2''1/2 230 V AC | 086008 | S1003932 |
€783.41
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN80 - 3'' 230 V AC | 086009 | S1003933 |
€838.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC DN10 - 3/8'' | 086011 | S1003934 |
€64.06
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V AC | 086012 | S1003935 |
€64.56
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V AC | 086013 | S1003936 |
€67.54
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V AC | 086014 | S1003937 |
€73.00
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 24 V AC | 086015 | S1003938 |
€156.20
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 24 V AC | 086016 | S1003939 |
€187.77
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 24 V AC | 086017 | S1003940 |
€268.23
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN65 - 2''1/2 24 V AC | 086018 | S1003941 |
€783.41
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN80 - 3'' 24 V AC | 086019 | S1003942 |
€838.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN10 - 3/8'' 48 V AC | 086031 | S1003943 |
€59.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 48 V AC | 086032 | S1003944 |
€63.44
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 48 V AC | 086033 | S1003945 |
€66.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 48 V AC | 086034 | S1003946 |
€70.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 48 V AC | 086035 | S1003947 |
€155.91
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 48 V AC | 086036 | S1003948 |
€196.87
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 48 V AC | 086037 | S1003949 |
€286.14
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN65 - 2''1/2 48 V AC | 086038N | S1003950 |
€789.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN80 - 3'' 48 V AC | 086039N | S1003951 |
€852.43
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN10 - 3/8'' 12 V DC | 086041 | S1003952 |
€59.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 12 V DC | 086042 | S1003953 |
€63.44
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 12 V DC | 086043 | S1003954 |
€66.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 12 V DC | 086044 | S1003955 |
€70.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 12 V DC | 086045 | S1003956 |
€155.91
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 12 V DC | 086047N | S1003957 |
€286.14
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN65 - 2''1/2 12 V DC | 086048N | S1003958 |
€789.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN80 - 3'' 12 V DC | 086049N | S1003959 |
€852.43
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC DN10 - 3/8'' | 086051 | S1003960 |
€59.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V DC | 086052 | S1003961 |
€63.44
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V DC | 086053 | S1003962 |
€66.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V DC | 086054 | S1003963 |
€70.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 24 V DC | 086055 | S1003964 |
€155.91
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 24 V DC | 086056 | S1003965 |
€196.87
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 24 V DC | 086057 | S1003966 |
€286.14
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN65 - 2''1/2 24 V DC | 086058 | S1003967 |
€789.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN80 - 3'' 24 V DC | 086059 | S1003968 |
€852.43
(excl. btw)
|
add to cart |
