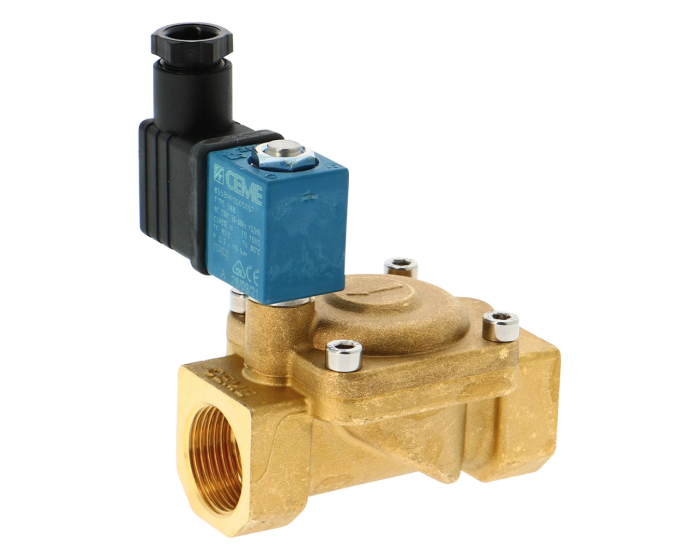

The solenoid valve type ESM 85 is a 2/2-way normally closed (NC) servo-assisted brass solenoid valve, all voltages.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 0.3 |
| Coil type | B4 |
| Connector | T22 |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 61.0 |
| Fluid | Water / Air / Neutral gases |
| Protection index (IP) | IP 65 |
| Kv (m³/h) | 1.86 |
| Body material | Brass CW617N |
| Membrane material | NBR |
| Position | Normally closed |
| PS (bar) | 10 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 80 |
| Solenoid valve type | Servo-assisted |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N 230 V AC DN10 - 3/8'' | 085001 | S1003777 |
€43.41
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 230 V AC | 085002 | S1003778 |
€43.73
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 230 V AC | 085003 | S1003779 |
€52.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 230 V AC | 085004 | S1003780 |
€61.74
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC DN10 - 3/8'' | 085011 | S1003781 |
€43.41
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V AC | 085012 | S1003782 |
€43.73
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V AC | 085013 | S1003783 |
€52.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V AC | 085014 | S1003784 |
€61.74
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC DN10 - 3/8'' | 085051 | S1003785 |
€43.41
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V DC | 085052 | S1003786 |
€43.73
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V DC | 085053 | S1003787 |
€52.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V DC | 085054SE | S1003788 |
€61.74
(excl. btw)
|
add to cart |
