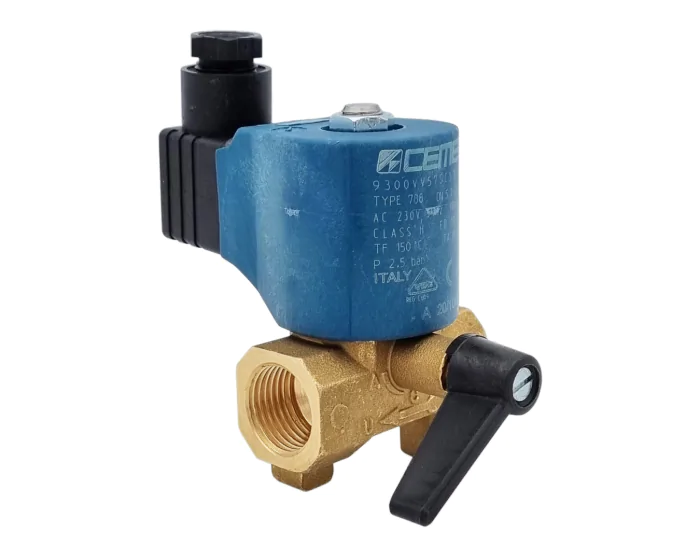

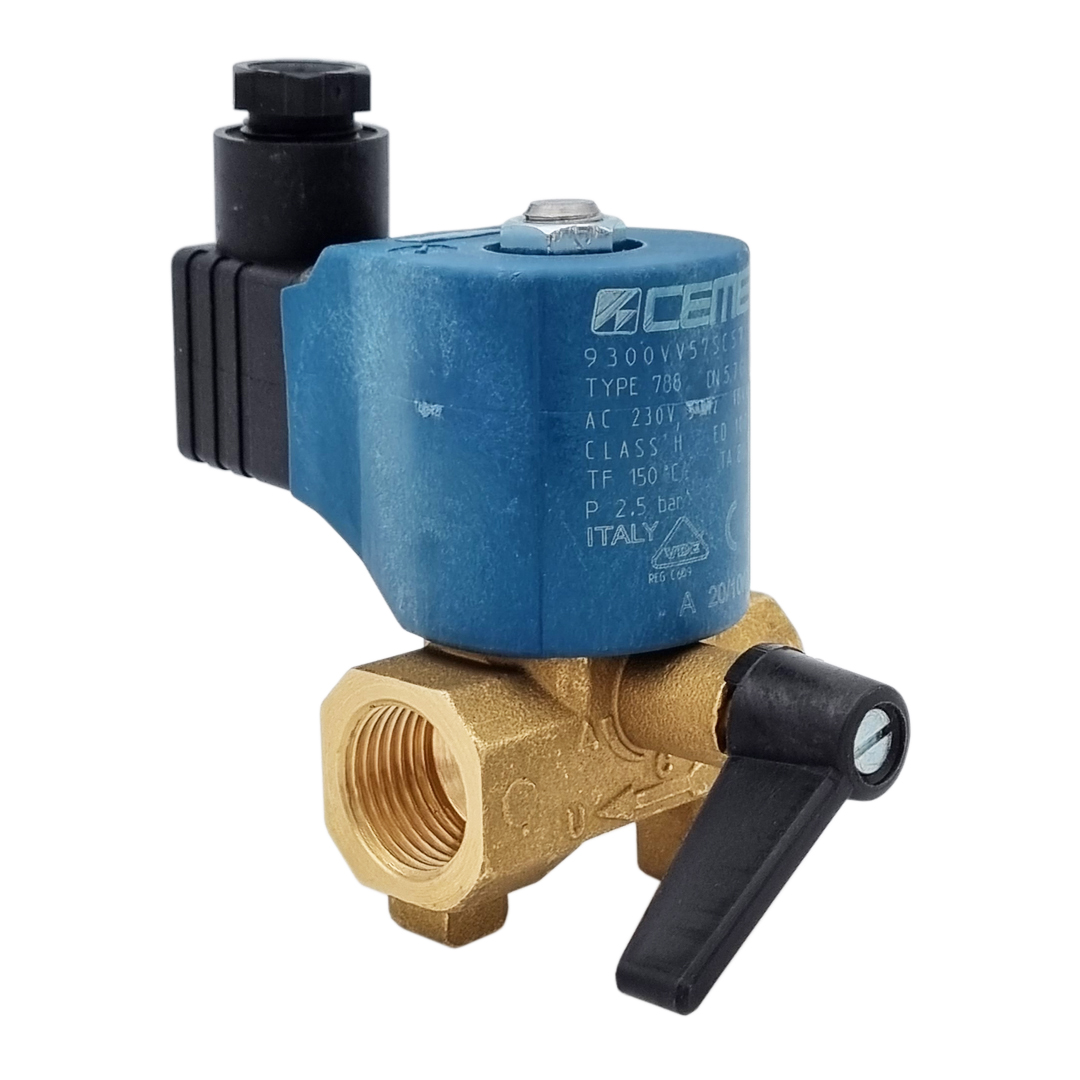

The ECM 93 is a 2/2-way direct acting solenoid valve for automatic shut-off of common fluid systems such as water, air or neutral gases. Brass body. G threaded fitting. Normal iron operation.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 5 |
| Minimum delta P (bar) | 0 |
| Coil type | B12 |
| Connector | T30 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 56.0 |
| Fluid | Water / Air / Neutral gases |
| Protection index (IP) | IP 65 |
| Gasket | FKM |
| Body material | Brass CW617N |
| Position | Normally closed |
| PS (bar) | 5 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 150 |
| TS min (°C) | 5 |
| Solenoid valve type | Direct acting |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N 230 V AC | 088502 | S1005213 |
€68.86
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC | 088512N | S1005214 |
€68.86
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC | 088552N | S1005215 |
€68.86
(excl. btw)
|
add to cart |
