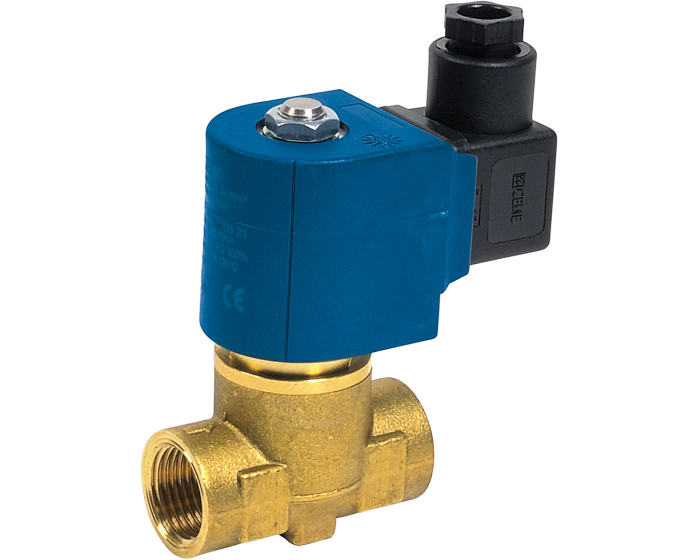

The Type 83 20 compressed air solenoid valve is a normally closed (NC), all-voltage, servo-controlled brass valve.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 20 |
| Minimum delta P (bar) | 0.1 |
| Coil type | B12 |
| Connector | T30 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 55.0 |
| Protection index (IP) | IP 65 |
| Gasket | FKM |
| Kv (m³/h) | 1.40 |
| Body material | Brass CW617N |
| Position | Normally closed |
| PS (bar) | 20 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 150 |
| TS min (°C) | -10 |
| Solenoid valve type | Servo-assisted |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N 230 V AC DN8 - 1/4'' | 083000 | S1005039 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 230 V AC DN10 - 3/8'' | 083001 | S1005040 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 230 V AC | 083002 | S1005041 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC DN8 - 1/4'' | 083010 | S1005042 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC DN10 - 3/8'' | 083011 | S1005043 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V AC | 083012 | S1005044 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN8 - 1/4'' 110 V AC | 083020N | S1005045 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN10 - 3/8'' 110 V AC | 083021 | S1005046 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 110 V AC | 083022 | S1005047 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN8 - 1/4'' 48 V AC | 083030 | S1005048 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 48 V AC | 083032 | S1005049 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN8 - 1/4'' 12 V DC | 083040 | S1005050 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 12 V DC | 083042 | S1005051 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC DN8 - 1/4'' | 083050 | S1005052 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC DN10 - 3/8'' | 083051 | S1005053 |
€46.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V DC | 083052 | S1005054 |
€46.89
(excl. btw)
|
add to cart |
