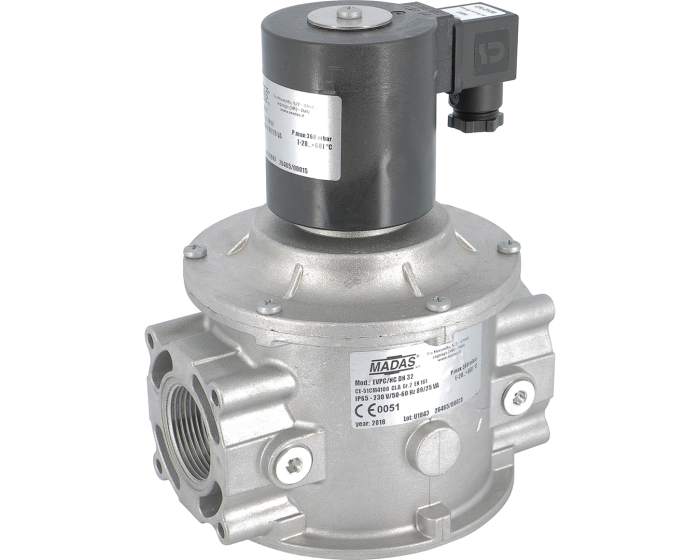

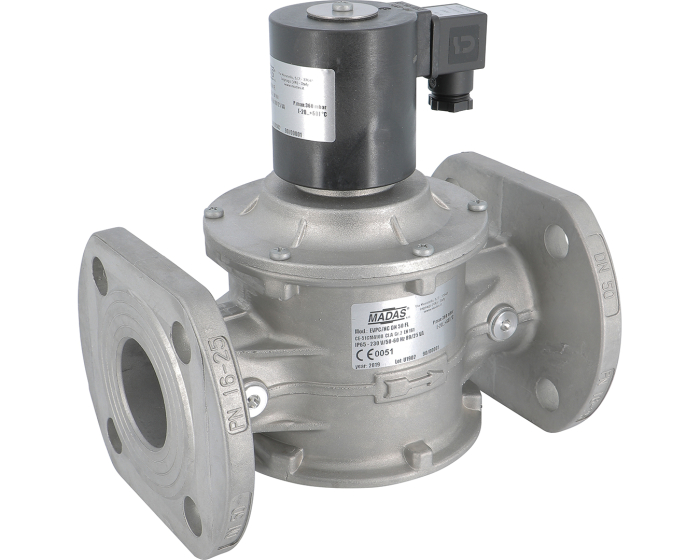

The automatic solenoid valve type EW-EVP is a normally closed (NC) aluminium gas solenoid valve for natural gas and LPG.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Connector | T30 |
| DN | DN50 - 2'' |
| Face to Face (mm) | 230.0 |
| Fluid | Natural gas / LPG |
| Protection index (IP) | IP 65 |
| Body material | Aluminium |
| Slow opening | No |
| Position | Normally closed |
| PS (bar) | 0.36 |
| PS (mbar) | 360 |
| Connections | Flanged PN16 |
| Voltage | 230 V AC |
| TS max (°C) | 60 |
| TS min (°C) | -20 |
| Gas solenoid valve type | Automatic |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Aluminium DN50 - 2'' 230 V AC Flanged PN16 | 092302M | S1012911 |
€297.43
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN65 - 2''1/2 230 V AC Flanged PN16 | 092303M | S1012912 |
€715.70
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN80 - 3'' 230 V AC Flanged PN16 | 092304M | S1012913 |
€736.60
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN100 - 4'' 230 V AC Flanged PN16 | 092305M | S1012914 |
€1,231.54
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN50 - 2'' 24 V AC Flanged PN16 | 092312M | S1012915 |
€297.43
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN65 - 2''1/2 24 V AC Flanged PN16 | 092313M | S1012916 |
€715.70
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN80 - 3'' 24 V AC Flanged PN16 | 092314M | S1012917 |
€736.60
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN100 - 4'' 24 V AC Flanged PN16 | 092315M | S1012918 |
€1,231.54
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN15 - 1/2'' BSP FF 230 V AC | 092402C | S1012919 |
€92.94
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN20 - 3/4'' BSP FF 230 V AC | 092403C | S1012920 |
€92.94
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN25 - 1'' BSP FF 230 V AC | 092404C | S1012921 |
€92.94
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN32 - 1''1/4 BSP FF 230 V AC | 092405B | S1012922 |
€232.36
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN40 - 1''1/2 BSP FF 230 V AC | 092406B | S1012923 |
€237.03
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN50 - 2'' BSP FF 230 V AC | 092407B | S1012924 |
€246.31
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN15 - 1/2'' BSP FF 24 V AC | 092412C | S1012925 |
€92.94
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN20 - 3/4'' BSP FF 24 V AC | 092413C | S1012926 |
€92.94
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN25 - 1'' BSP FF 24 V AC | 092414C | S1012927 |
€92.94
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN32 - 1''1/4 BSP FF 24 V AC | 092415B | S1012928 |
€232.36
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN40 - 1''1/2 BSP FF 24 V AC | 092416B | S1012929 |
€237.03
(excl. btw)
|
add to cart |
| Flanged PN16 Aluminium DN50 - 2'' BSP FF 24 V AC | 092417B | S1012930 |
€246.31
(excl. btw)
|
add to cart |
