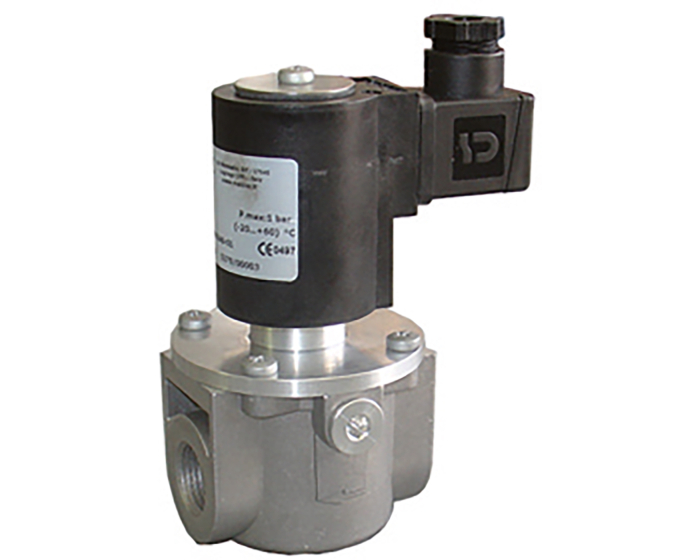

The automatic solenoid valve type XV-6 is a normally closed (NC) aluminium gas solenoid valve, natural gas and LPG.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Connector | T30 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 70.0 |
| Fluid | Natural gas / LPG |
| Protection index (IP) | IP 65 |
| Body material | Aluminium |
| Slow opening | No |
| Position | Normally closed |
| PS (bar) | 6 |
| PS (mbar) | 6000 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 60 |
| TS min (°C) | -20 |
| Gas solenoid valve type | Automatic |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Aluminium DN15 - 1/2'' BSP FF 230 V AC | 092502M | S1013013 |
€178.93
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN20 - 3/4'' BSP FF 230 V AC | 092503M | S1013014 |
€178.93
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN25 - 1'' BSP FF 230 V AC | 092504M | S1013015 |
€178.93
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN32 - 1''1/4 BSP FF 230 V AC | 092505M | S1013016 |
€494.94
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN40 - 1''1/2 BSP FF 230 V AC | 092506M | S1013017 |
€494.94
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN50 - 2'' BSP FF 230 V AC | 092507M | S1013018 |
€494.94
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN65 - 2''1/2 230 V AC Flanged PN16 | 092508M | S1013019 |
€1,317.63
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN80 - 3'' 230 V AC Flanged PN16 | 092509M | S1013020 |
€1,323.14
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN100 - 4'' 230 V AC Flanged PN16 | 092510M | S1013021 |
€1,967.51
(excl. btw)
|
add to cart |
