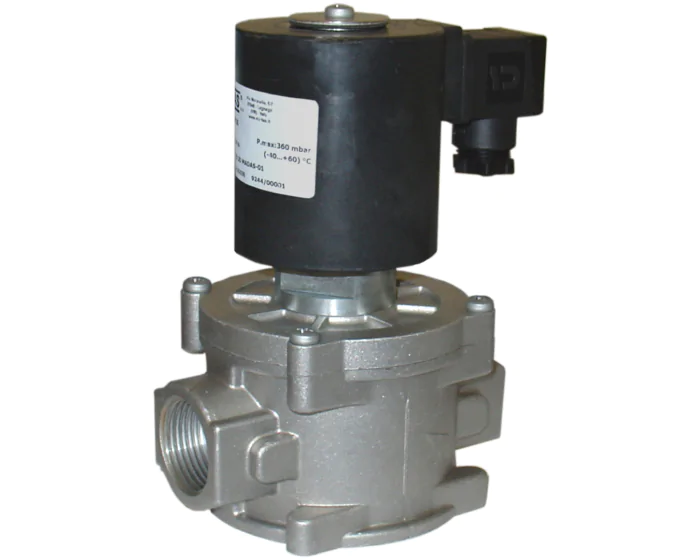

The solenoid valve type MN 15/1 FIOUL EN 264 is a normally closed (NC) direct acting aluminium solenoid valve for the automatic shut-off of oil burners.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 8 |
| Minimum delta P (bar) | 0 |
| DN | DN20 - 3/4'' |
| Face to Face (mm) | 120.0 |
| Fluid | Fuel |
| Protection index (IP) | IP 65 |
| Gasket | NBR |
| Body material | Aluminium |
| Position | Normally closed |
| PS (bar) | 8 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 60 |
| TS min (°C) | -5 |
| Solenoid valve type | Direct acting |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Aluminium DN20 - 3/4'' 230 V AC | 088203 | S1005420 |
€293.59
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN25 - 1'' 230 V AC | 088204 | S1005421 |
€297.06
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN20 - 3/4'' 24 V AC | 088213 | S1005422 |
€293.59
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN25 - 1'' 24 V AC | 088214 | S1005423 |
€297.06
(excl. btw)
|
add to cart |
