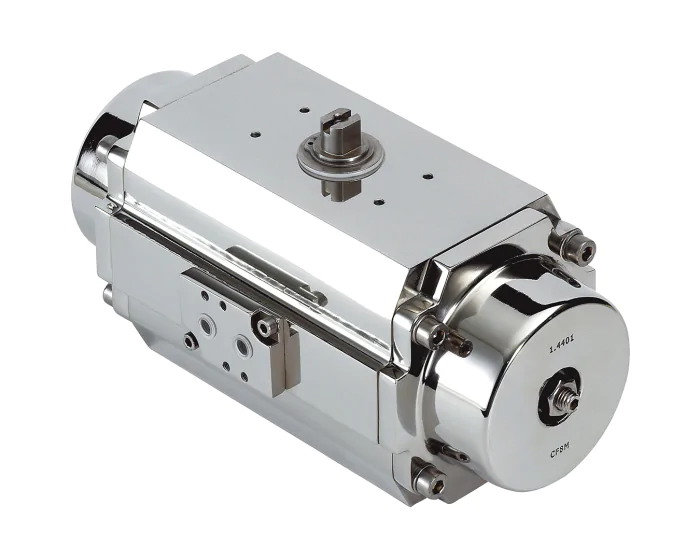

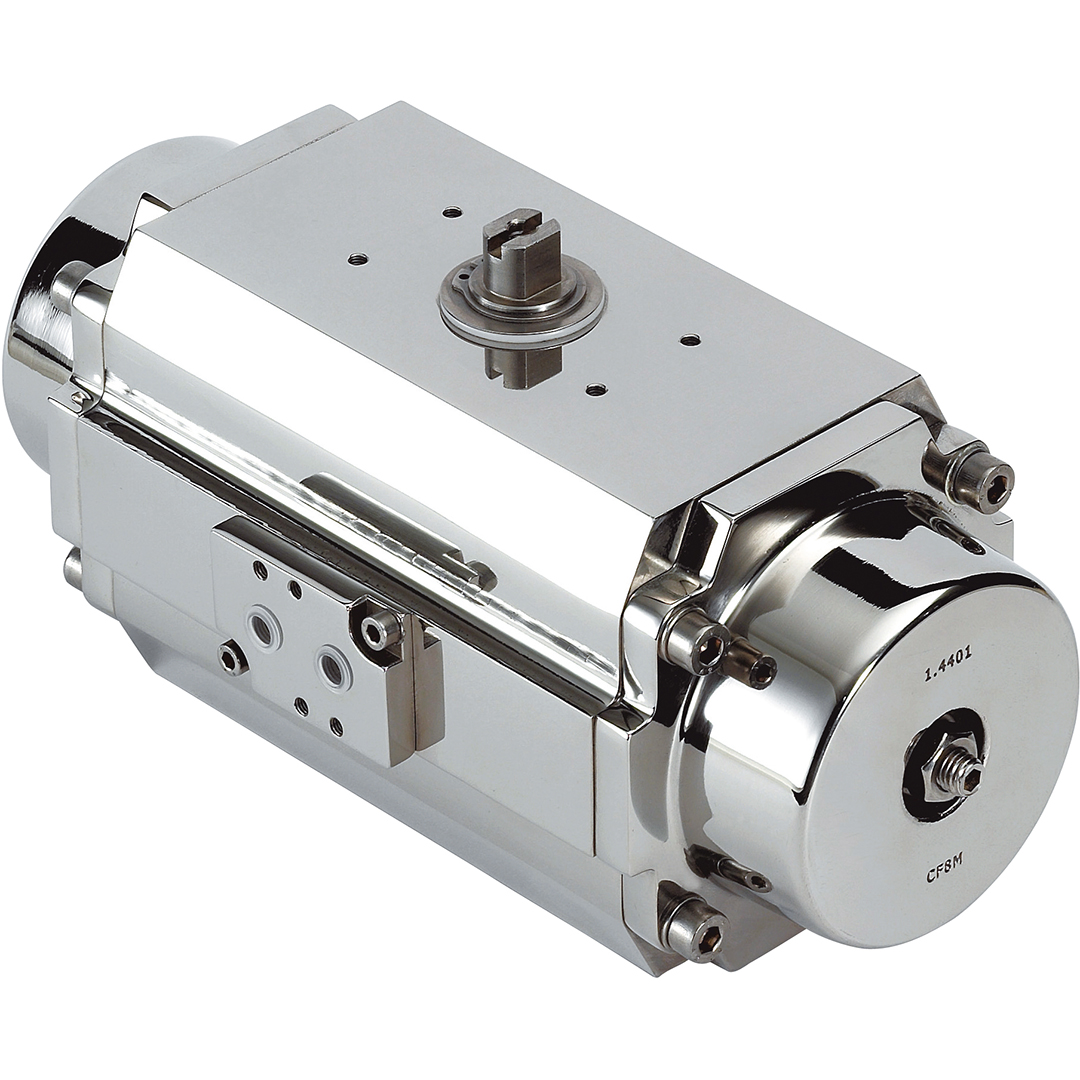

Pneumatic actuator with 1/4 turn rack and pinion. Body and caps in stainless steel 316. PS: 8 bar - TS: -20 / +80°C. Solenoid pilot valve mounting according to NAMUR, valve mounting according to ISO 5211. ATEX EEx II 2G/D c.
Flanged ball valve with floating ball Body in steel 1.0619 Ball in stainless steel A 351 Gr. CF8M Seats in Stansit Max. working pressure: 40 bar (DN 15 to DN 50), 16 bar (DN 65 to DN 200) Face to face: EN558-1 series 27 Connection: flanged PN 16/40 (DN 15 to DN 50), PN 16 (DN 65 to DN 200) ISO mounting flange Fire safe according to ISO 10497 With stem extension and protection in stainless steel (L = 100 mm) With pneumatic actuator spring return type PE, spring to close, air to open Equipped with: Switchbox Topworx TXP-E20GNPM Solenoid valve fig. MNAMXC24 - 24 VUC, Atex II 2G/D - EExem II T5, with cable (3 m) Knee stud instant - rotatable with BSP parallel thread and O-ring seal - 8 x 1/4'' Screw-in silencer - with body in brass and stainless steel damping - diam. 1/4''
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Operating angle (°) | 90 |
| Adjustable limit screws | No |
| Square, star (mm) | 11 |
| ATEX compatible | Yes |
| Torque (Nm) | 8 |
| Body material | Stainless steel 316 (1.4401) |
| ATEX protection mode | Ex c |
| ISO pad 5211 | F3/F5 |
| PS (bar) | 8 |
| TS max (°C) | 80 |
| TS min (°C) | -20 |
| Pneumatic actuator type | Spring return |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| Spring closing torque (Nm) | 4.1 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Stainless steel 316 (1.4401) 4.1 | 017304 | S1001296 |
€366.16
(excl. btw)
|
add to cart |
| Stainless steel 316 (1.4401) 7 | 017306 | S1001297 |
€453.16
(excl. btw)
|
add to cart |
| Stainless steel 316 (1.4401) 12.5 | 017307 | S1001298 |
€665.19
(excl. btw)
|
add to cart |
| Stainless steel 316 (1.4401) 25.3 | 017308 | S1001299 |
€914.56
(excl. btw)
|
add to cart |
| Stainless steel 316 (1.4401) 37.8 | 017309 | S1001300 |
€1,018.37
(excl. btw)
|
add to cart |
| Stainless steel 316 (1.4401) 60 | 017310 | S1001301 |
€1,171.03
(excl. btw)
|
add to cart |
