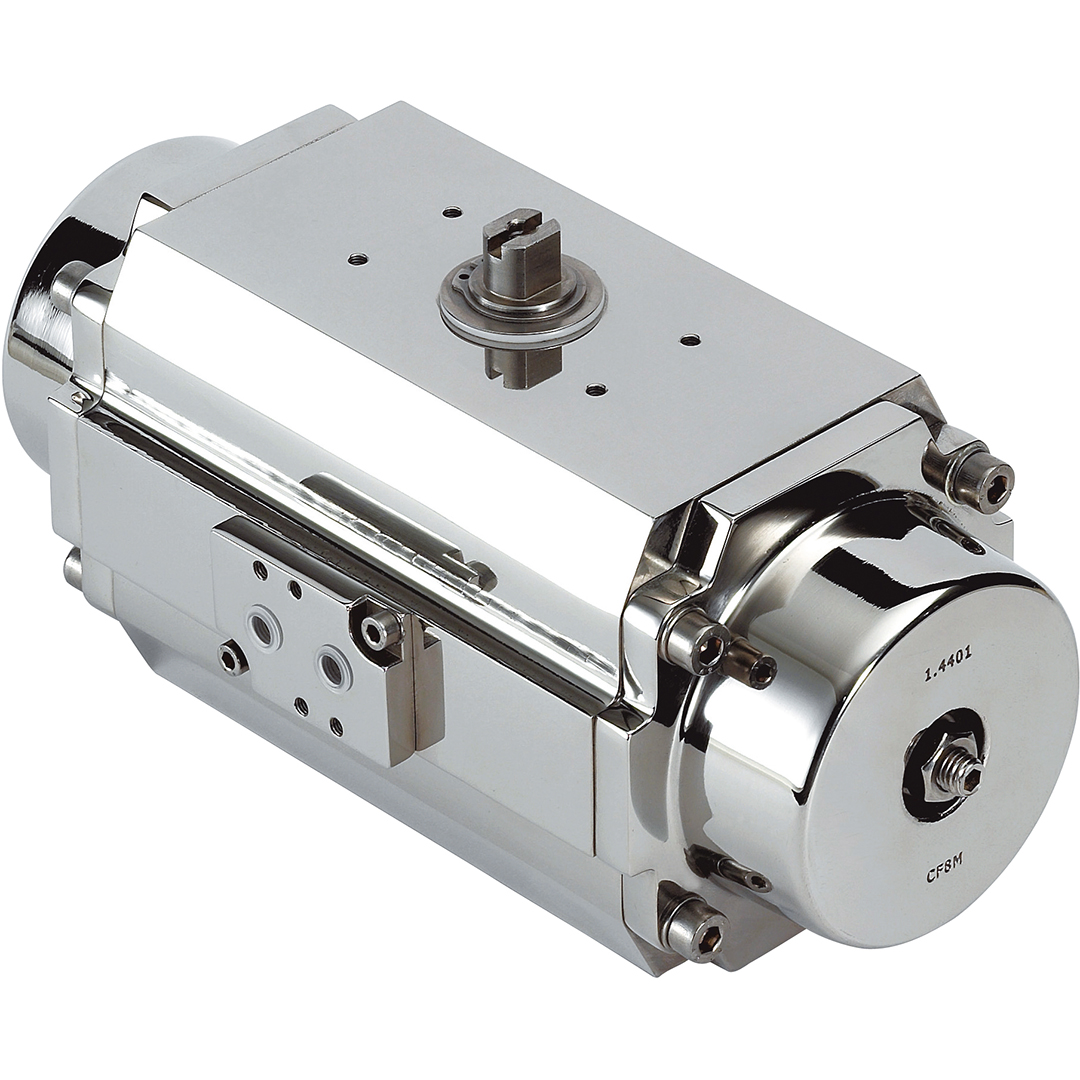

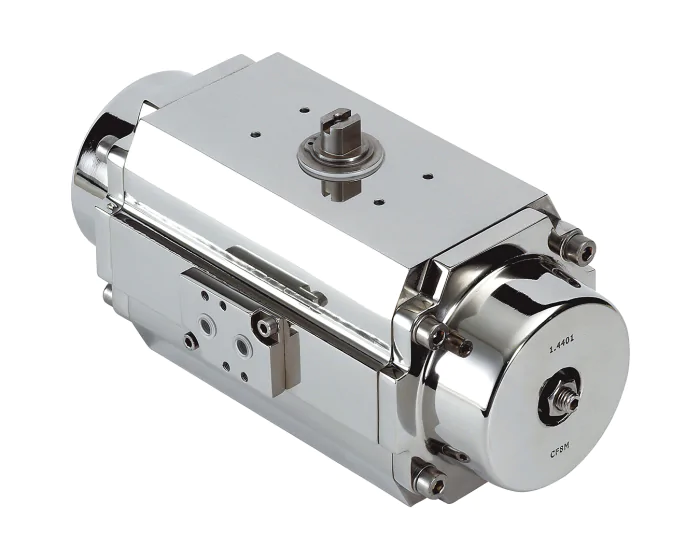

Pneumatic actuator with 1/4 turn rack and pinion. Body and caps in stainless steel 316. PS: 8 bar - TS: -20 / +80°C. Solenoid pilot valve mounting according to NAMUR, valve mounting according to ISO 5211. ATEX EEx II 2G/D c.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Operating angle (°) | 90 |
| Adjustable limit screws | No |
| Square, star (mm) | 11 |
| ATEX compatible | Yes |
| Torque (Nm) | 13 |
| Body material | Stainless steel 316 (1.4401) |
| ATEX protection mode | Ex c |
| ISO pad 5211 | F3/F5 |
| PS (bar) | 8 |
| TS max (°C) | 80 |
| TS min (°C) | -20 |
| Pneumatic actuator type | Double acting |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Stainless steel 316 (1.4401) 13 | 017204 | S1001145 |
€435.99
(excl. btw)
|
add to cart |
| Stainless steel 316 (1.4401) 18 | 017206 | S1001146 |
€499.80
(excl. btw)
|
add to cart |
| Stainless steel 316 (1.4401) 33.0 | 017207 | S1001147 |
€633.26
(excl. btw)
|
add to cart |
| Stainless steel 316 (1.4401) 70 | 017208 | S1001148 |
€891.27
(excl. btw)
|
add to cart |
| Stainless steel 316 (1.4401) 107 | 017209 | S1001149 |
€1,062.21
(excl. btw)
|
add to cart |
| Stainless steel 316 (1.4401) 166 | 017210 | S1001150 |
€1,333.71
(excl. btw)
|
add to cart |
| Stainless steel 316 (1.4401) 274 | 017211 | S1001151 |
€1,487.36
(excl. btw)
|
add to cart |
| Stainless steel 316 (1.4401) 361 | 017212 | S1001152 |
€2,127.00
(excl. btw)
|
add to cart |
