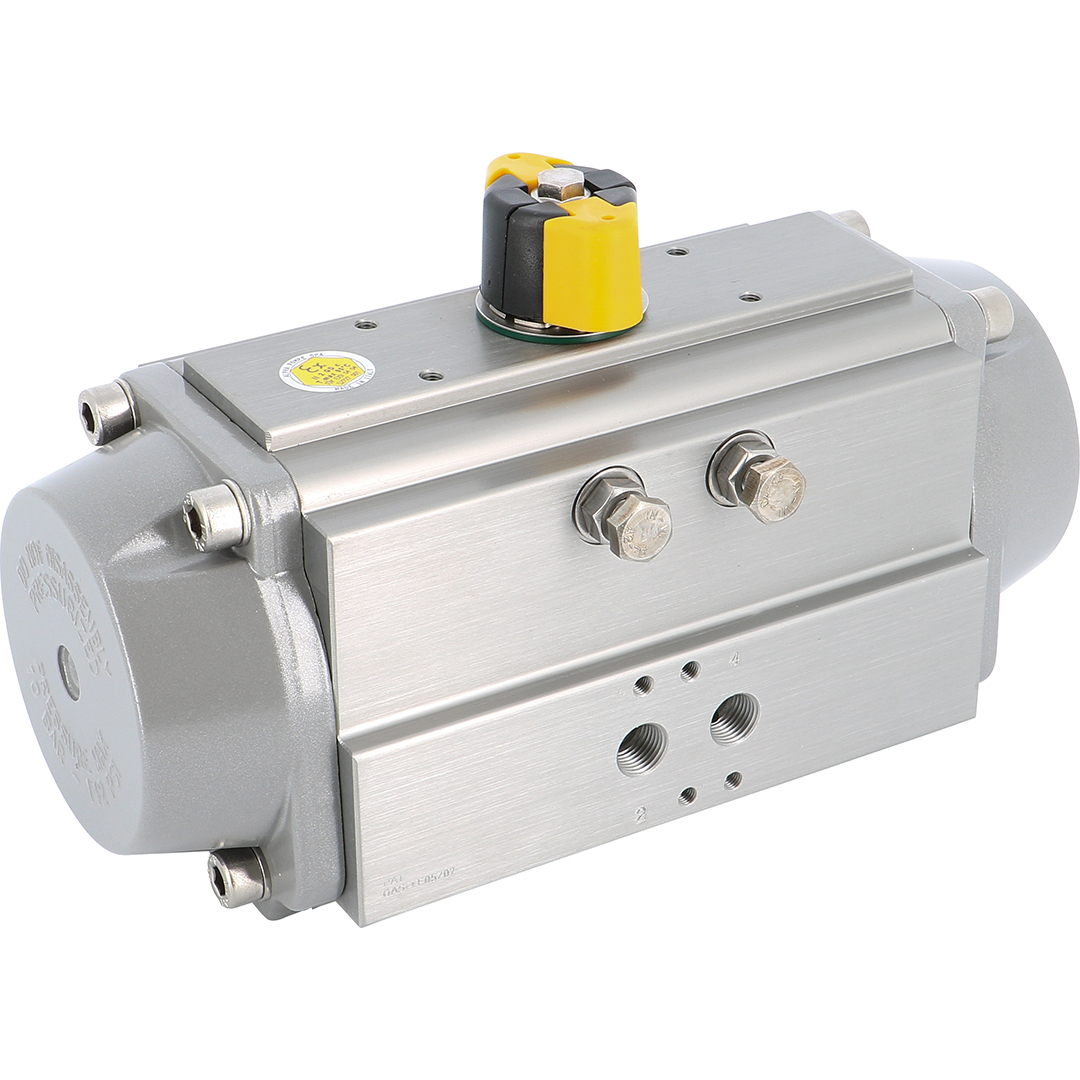

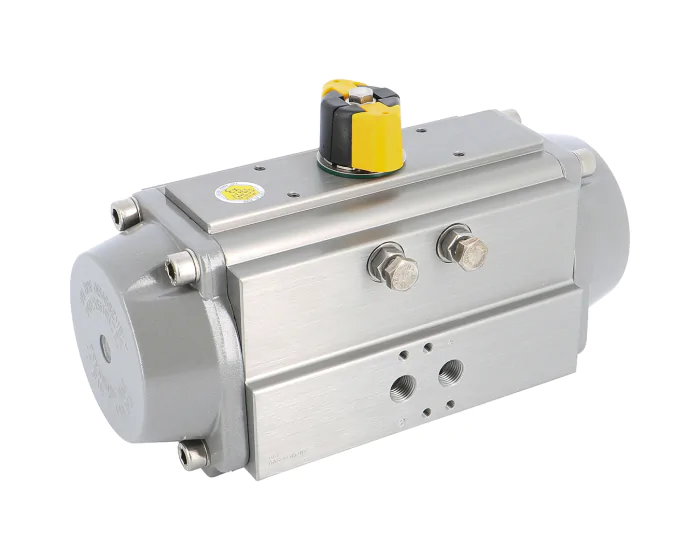

Alphair pneumatic actuator, spring return, for the actuation of 1/4 turn valves. ATEX and SIL3 approvals. Complies with the EN 15714-3 standard.
| Specification | Value |
|---|---|
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| Square, star (mm) | 11 |
| Torque (Nm) | 8 |
| Body material | Aluminium |
| ATEX protection mode | Ex c |
| ISO pad 5211 | F3/F5 |
| PS (bar) | 8 |
| TS max (°C) | 80 |
| TS min (°C) | -20 |
| Pneumatic actuator type | Spring return |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| Spring closing torque (Nm) | 5 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Aluminium 5 | 017104RE | S1000938 |
€104.04
(excl. btw)
|
add to cart |
| Aluminium 8.4 | 017106RE | S1000939 |
€135.26
(excl. btw)
|
add to cart |
| Aluminium 14.8 | 017107RE | S1000940 |
€139.41
(excl. btw)
|
add to cart |
| Aluminium 29 | 017108RE | S1000941 |
€193.80
(excl. btw)
|
add to cart |
| Aluminium 43 | 017109RE | S1000942 |
€260.10
(excl. btw)
|
add to cart |
| Aluminium 67 | 017110RE | S1000943 |
€316.29
(excl. btw)
|
add to cart |
| Aluminium 108 | 017111RE | S1000944 |
€447.37
(excl. btw)
|
add to cart |
| Aluminium 139 | 017112RE | S1000945 |
€551.41
(excl. btw)
|
add to cart |
| Aluminium 205 | 017113RE | S1000946 |
€769.90
(excl. btw)
|
add to cart |
| Aluminium 284 | 017114RE | S1000947 |
€820.89
(excl. btw)
|
add to cart |
| Aluminium 376 | 017115RE | S1000948 |
€1,227.67
(excl. btw)
|
add to cart |
| Aluminium 520 | 017116RE | S1000949 |
€1,550.20
(excl. btw)
|
add to cart |
