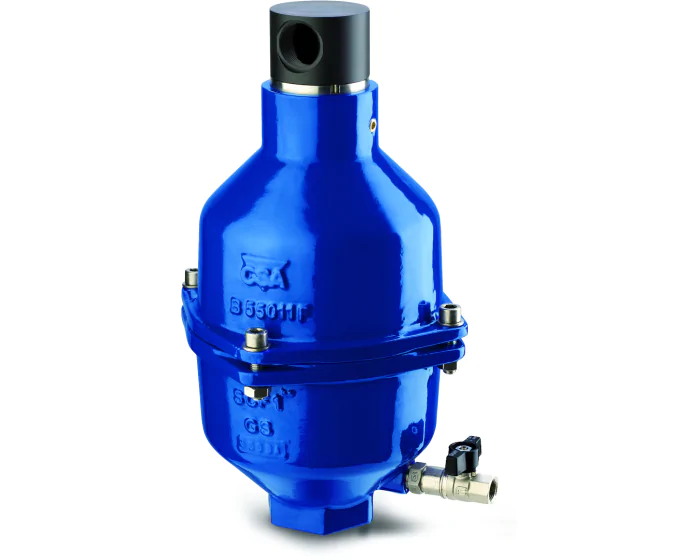

Name: Air release valve 3145 - Ductile iron body - Full bore - 2''
SKU: 10764
Price: 880.25714285714 EUR
Availability: InStock

Air release valve 3145 - Ductile iron body - Full bore - 2''

Air release valve 3145 - Ductile iron body - Full bore - 2''

€880.26 (excl. btw)

Discover our CSA range of suction pads. Body in GJS 450-10 epoxy coated RAL 5005, stainless steel seat, AISI 316 stainless steel air outlet system, stainless steel bolts, NBR gasket, polypropylene float.

In stock Subject prior to sales
Categories : Overig

Documenten:

Description
Technical Specifications

Specification	Value
DN inches NPS	2''
Construction standard	EN 1074-4
Application	Water supply and distribution network
DN	DN50 - 2''
Fluid	Cold water
Body material	Ductile iron
PS (bar)	16
Connections	BSP F
TS max (°C)	60
TS min (°C)	0
Warranty period	2 years
In categories	Air release valves
