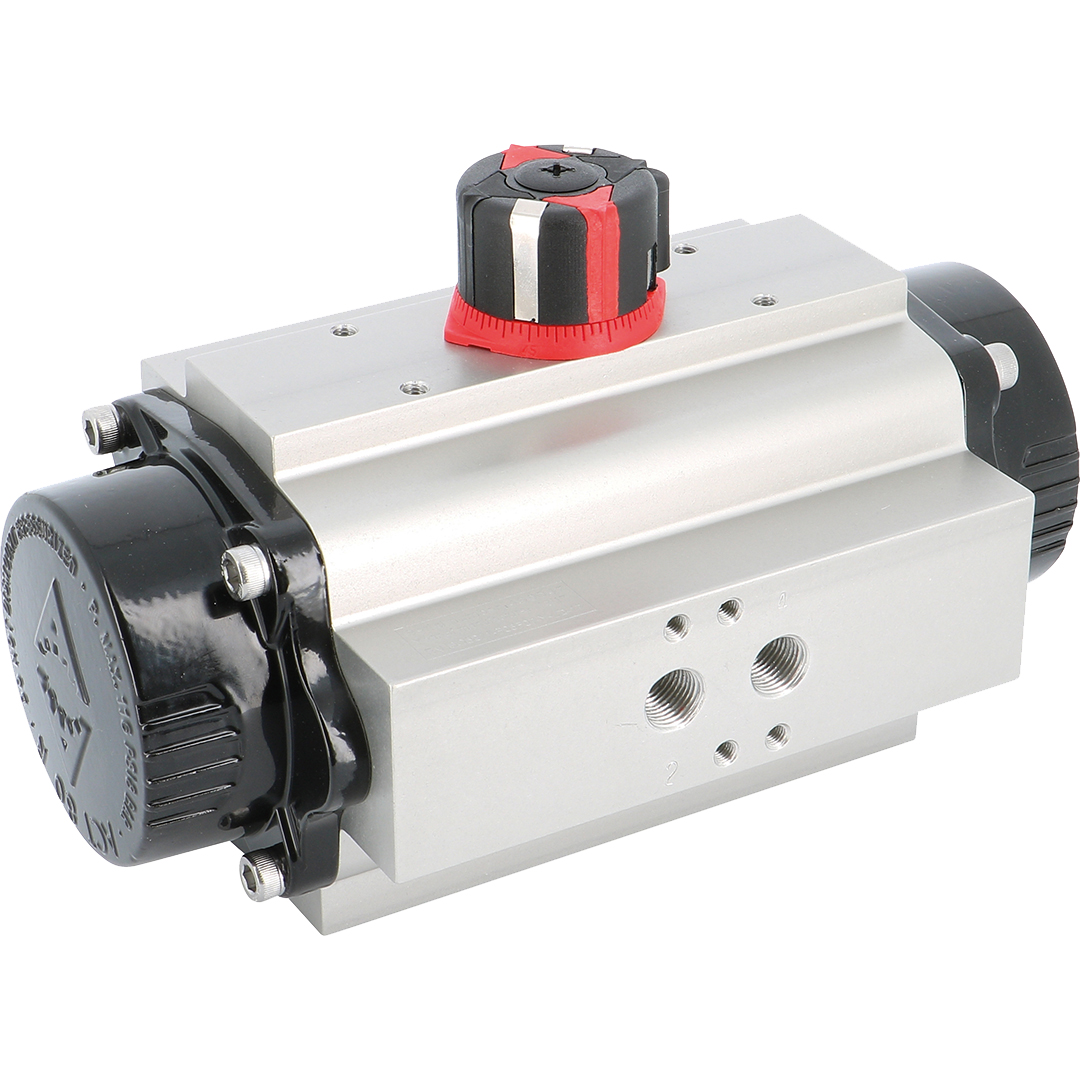

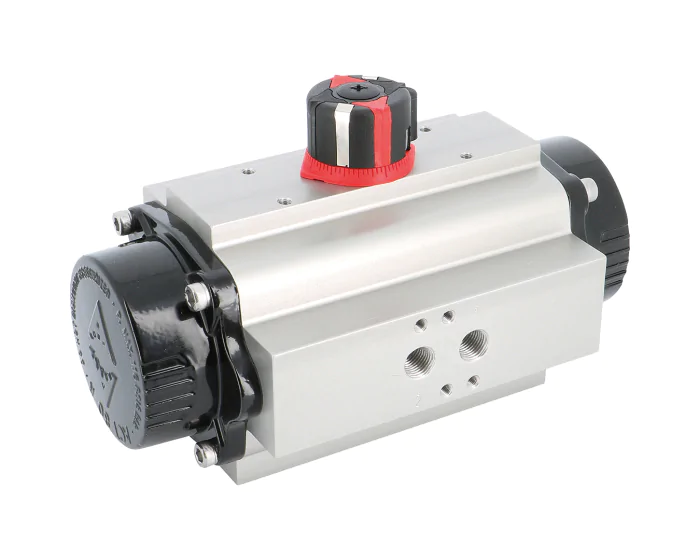

Actreg spring return pneumatic actuator for 1/4 turn valve actuation. It was equipped with springs for 6 bar air supply. Solenoid pilot valve mounting according to NAMUR, valve connection according to ISO 5211 and DIN 3337. ATEX APPROVED.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| Square, star (mm) | 11 |
| ATEX compatible | Yes |
| Torque (Nm) | 12 |
| Body material | Aluminium |
| ATEX protection mode | Ex c |
| ISO pad 5211 | F5 |
| PS (bar) | 6 |
| TS max (°C) | 100 |
| TS min (°C) | -30 |
| Pneumatic actuator type | Spring return |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| Spring closing torque (Nm) | 9 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Aluminium 9 | 016100B | S1000305 |
€96.46
(excl. btw)
|
add to cart |
| Aluminium 17 | 016101B | S1000306 |
€113.61
(excl. btw)
|
add to cart |
| Aluminium 30 | 016102B | S1000307 |
€146.07
(excl. btw)
|
add to cart |
| Aluminium 45 | 016103B | S1000308 |
€171.86
(excl. btw)
|
add to cart |
| Aluminium 73 | 016104B | S1000309 |
€220.54
(excl. btw)
|
add to cart |
| Aluminium 119 | 016105B | S1000310 |
€307.41
(excl. btw)
|
add to cart |
| Aluminium 177 | 016106B | S1000311 |
€393.34
(excl. btw)
|
add to cart |
| Aluminium 271 | 016107B | S1000312 |
€601.47
(excl. btw)
|
add to cart |
| Aluminium 400 | 016108B | S1000313 |
€843.01
(excl. btw)
|
add to cart |
| Aluminium 631 | 016109B | S1000314 |
€1,095.06
(excl. btw)
|
add to cart |
