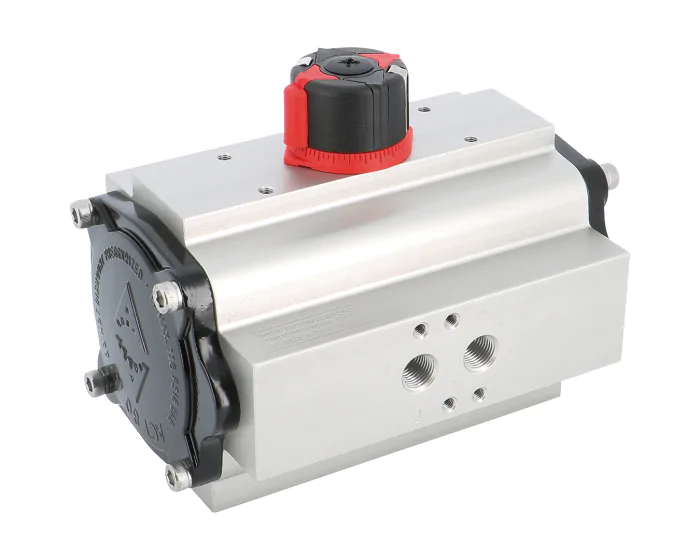

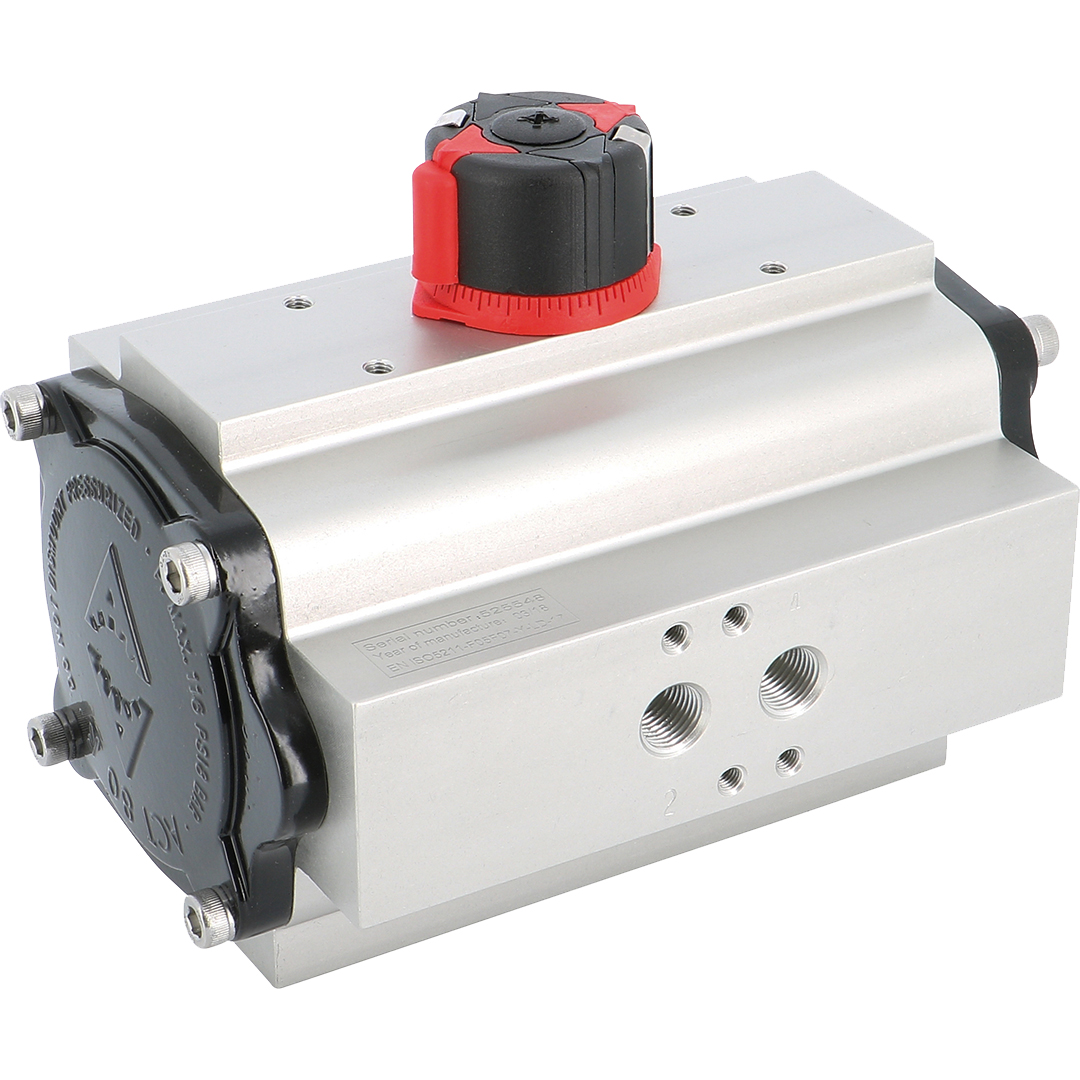

The 1/4 turn pneumatic rack and pinion Actreg actuator features an anodised aluminium body with epoxy-coated flanges. It offers NAMUR solenoid and ISO 5211 valve mounting, ATEX EEx II 2G/D c certification, and complies with EN 15714-3.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| Square, star (mm) | 11 |
| ATEX compatible | Yes |
| Torque (Nm) | 19 |
| Body material | Aluminium |
| ATEX protection mode | Ex c |
| ISO pad 5211 | F5 |
| PS (bar) | 10 |
| TS max (°C) | 100 |
| TS min (°C) | -30 |
| Pneumatic actuator type | Double acting |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Aluminium 19 | 015100B | S1000043 |
€78.31
(excl. btw)
|
add to cart |
| Aluminium 41 | 015101B | S1000044 |
€93.36
(excl. btw)
|
add to cart |
| Aluminium 77 | 015102B | S1000045 |
€119.29
(excl. btw)
|
add to cart |
| Aluminium 118 | 015103B | S1000046 |
€150.40
(excl. btw)
|
add to cart |
| Aluminium 175 | 015104B | S1000047 |
€186.70
(excl. btw)
|
add to cart |
| Aluminium 291 | 015105B | S1000048 |
€241.16
(excl. btw)
|
add to cart |
| Aluminium 433 | 015106B | S1000049 |
€313.76
(excl. btw)
|
add to cart |
| Aluminium 718 | 015107B | S1000050 |
€477.13
(excl. btw)
|
add to cart |
| Aluminium 1038 | 015108B | S1000051 |
€658.64
(excl. btw)
|
add to cart |
| Aluminium 1413 | 015109B | S1000052 |
€775.81
(excl. btw)
|
add to cart |
| Aluminium 2172 | 015110B | S1000053 |
€1,382.10
(excl. btw)
|
add to cart |
| Aluminium 3461 | 015111B | S1000054 |
€2,098.41
(excl. btw)
|
add to cart |
| Aluminium 4414 | 015112B | S1000055 |
€3,731.16
(excl. btw)
|
add to cart |
