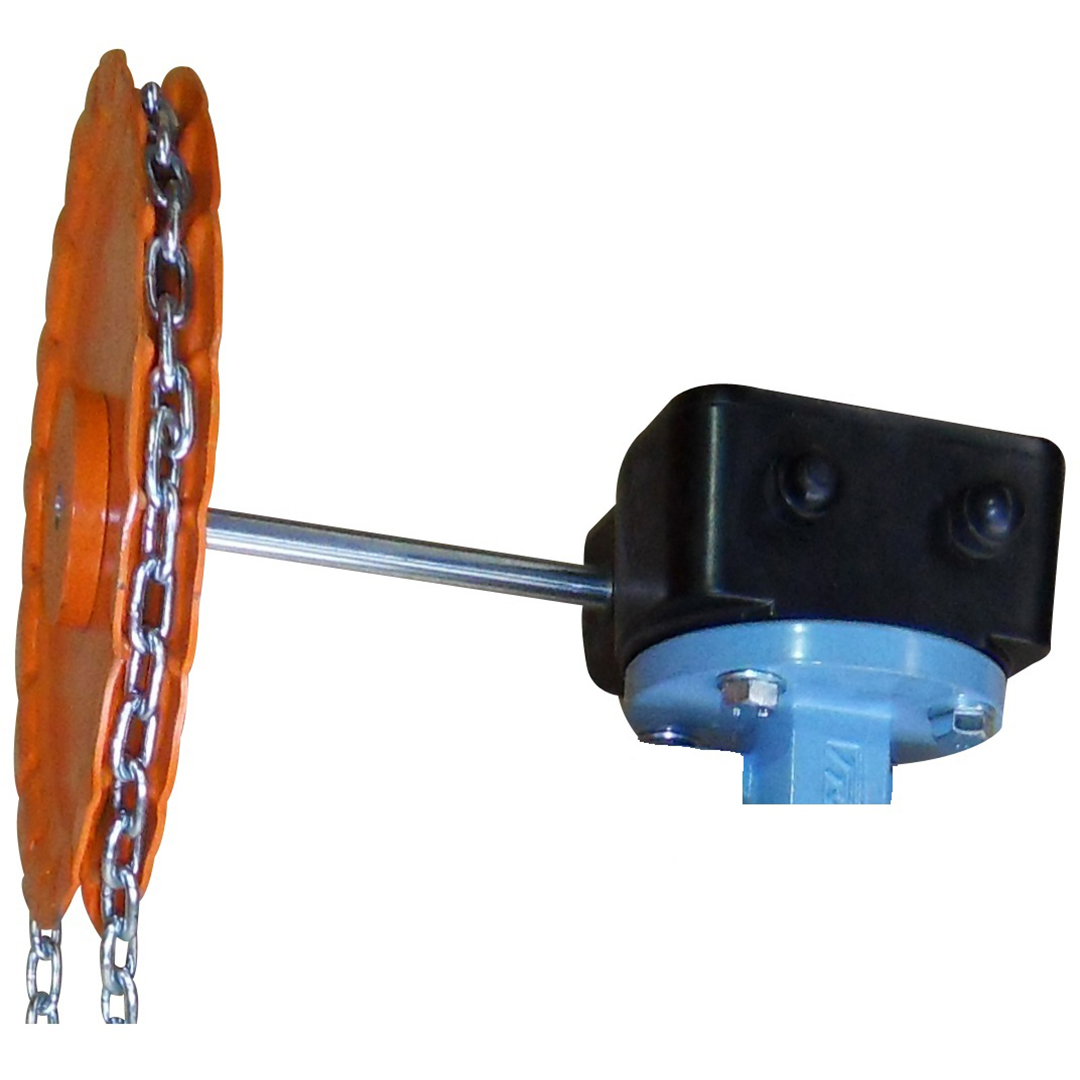

1194 Chainwheel for TTV butterfly valve DN40-50
€421.67
(excl. btw)
The 1194 series chain wheel gearbox is designed for TTV butterfly valves, from DN40 to DN400
| Specification | Value |
|---|---|
| DN inches NPS | 2'' |
| DN metric | 50/60 |
| Brand | TTV |
| Opening device | Gears |
| Shaft/stem matérial | Carbon steel 1.0737 |
| Square, star (mm) | Square 8 mm |
| Torque (Nm) | 300 |
| DN | 40/50 |
| Body material | Aluminium |
| ISO pad 5211 | F07 |
| Warranty period | 10 years |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Aluminium 40/50 | 1194050 | S1009129 |
€421.67
(excl. btw)
|
add to cart |
| Aluminium DN65 - 2''1/2 | 1194065 | S1009130 |
€421.67
(excl. btw)
|
add to cart |
| Aluminium 80/100 | 1194100 | S1009131 |
€421.67
(excl. btw)
|
add to cart |
| Aluminium 125/150 | 1194150 | S1009132 |
€455.51
(excl. btw)
|
add to cart |
| Aluminium DN200 - 8'' | 1194200 | S1009133 |
€455.51
(excl. btw)
|
add to cart |
| Aluminium DN250 - 10'' | 1194250 | S1009134 |
€970.27
(excl. btw)
|
add to cart |
| Aluminium DN300 - 12'' | 1194300 | S1009135 |
€970.27
(excl. btw)
|
add to cart |
| Aluminium DN350 - 14'' | 1194350 | S1009136 |
€1,242.47
(excl. btw)
|
add to cart |
| Aluminium DN400 - 16'' | 1194400 | S1009137 |
€1,242.47
(excl. btw)
|
add to cart |
