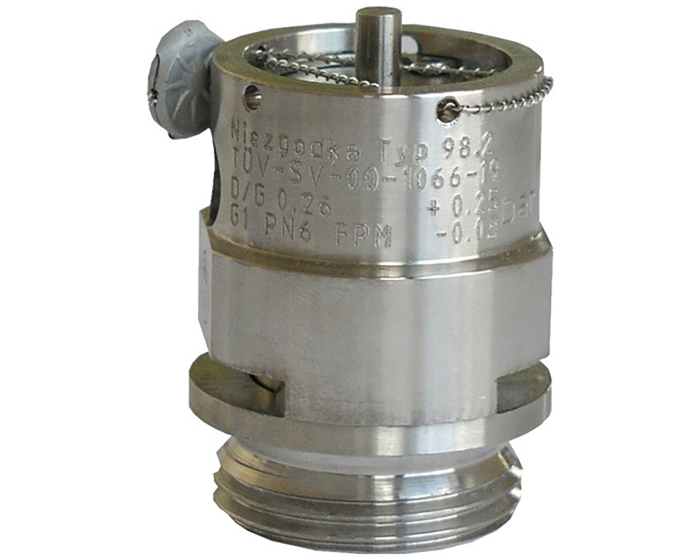

The S98 pressure-vacuum valve is designed to protect tanks against possible suppressions and depressions. It operates automatically and closes when pressure conditions return to normal.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S107207 |
| ATEX compatible | Yes |
| Bearing | FKM |
| CE_CERT | CE |
| Connections | BSP MM |
| FILES_3D_PATHS | output/datasheets/28904005/41377 |
| In categories | Safety valves |
| Body material | Stainless steel 316L (1.4404) |
| MAAT | 1'' |
| Option certificate 3.1 | Yes |
| SKU | 28904005 |
| TS max (°C) | 150 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| Exhaust system | free outlet |
